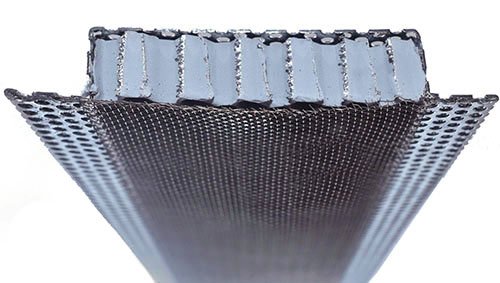

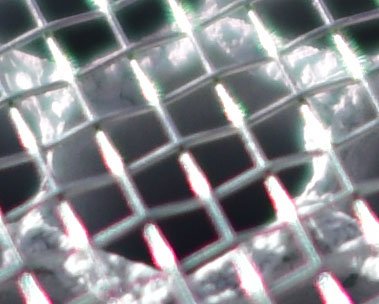

The Vent That ProtectsOur fire and ember resistant continuous vents for soffits provide the needed ventilation into attic space down the entire length of the soffit. Ideal for new construction in numerous materials, strip vents such as ours do not use airflow interrupting baffles and results in more venting per square inch. Our continuous vents for soffits feature a stainless steel ember screen and intumescent matrix!

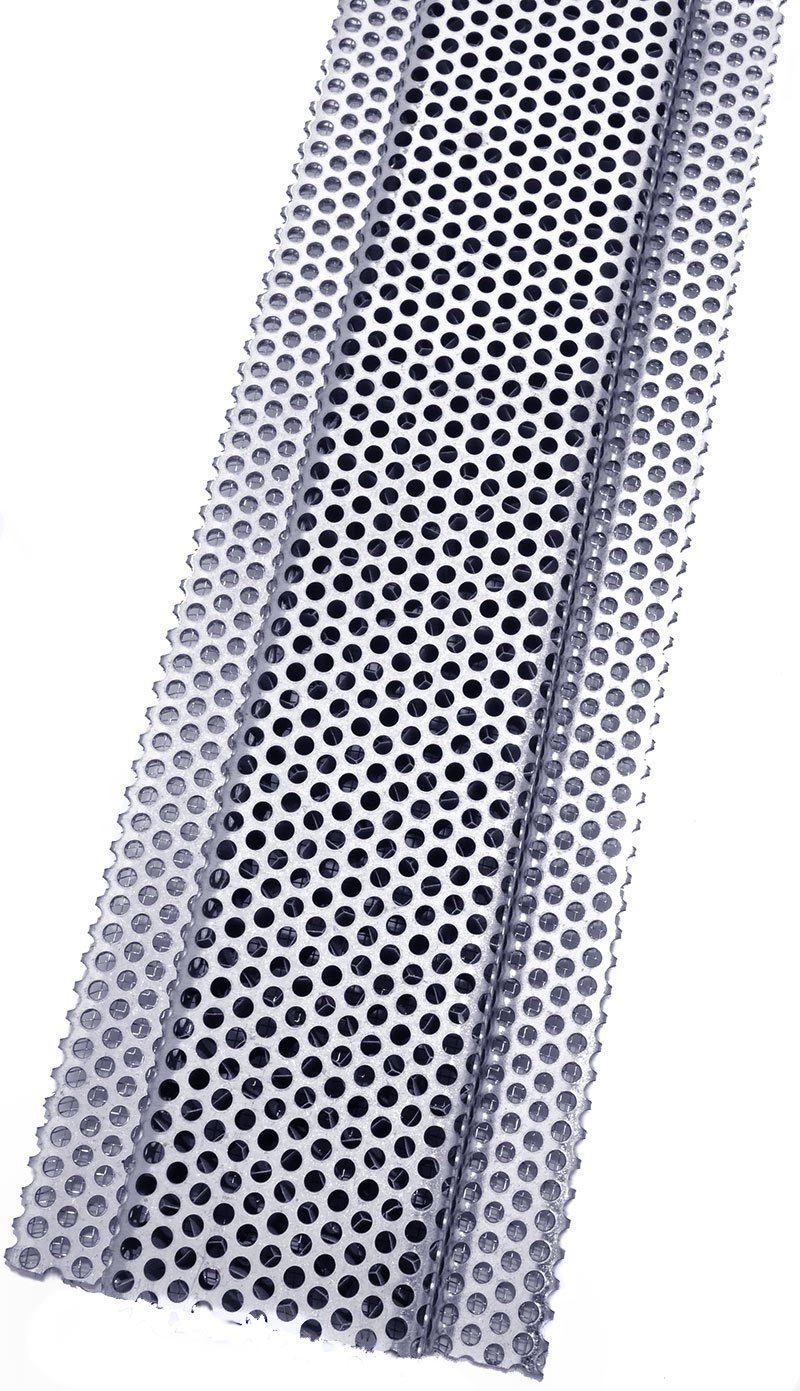

The Vulcan continuous soffit vents are available for new, or retro-fit applications, with our intumescent coating that closes at high temperatures and our ember catching mesh.
Continuous Soffit Vent Flange Diagrams
-
The following installation diagrams are for general and conceptual, illustration purposes only!
For specific installation instructions, please consult a licensed building professional.

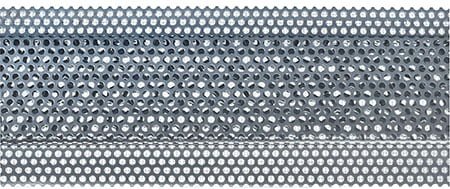

VSC (Vulcan Soffit; Continuous)
| SKU | Size in Inches | NFVA IN SQUARE INCHES | Description |
|---|---|---|---|
| VSC2120 | 2×120 | 96 | NAILING FLANGE ON BOTH SIDES |
| VSC2120FF | 2×120 | 96 | FLANGE FRONT |
| VSC2120R | 2×120 | 96 | NO FLANGE CONTINUOUS RETRO-FIT |
| VSC2120SL | 2×120 | 96 | SINGLE NAILING FLANGE |
| VSC2120SMC34 | 2×120 | 96 | STUCCO 3/4” |
| VSC2120SMC78 | 2×120 | 96 | STUCCO 7/8” |
| VSC3120 | 3×120 | 144 | NAILING FLANGE ON BOTH SIDES |
| VSC3120FF | 3X120 | 144 | FLANGE FRONT |
| VSC3120R | 3X120 | 144 | NO FLANGE CONTINUOUS RETRO-FIT |
| VSC3120SL | 3×120 | 144 | SINGLE NAILING FLANGE |
| VSC3120SMC34 | 3X120 | 144 | STUCCO 3/4” |
| VSC3120SMC78 | 3X120 | 144 | STUCCO 7/8” |
| VSC4120 | 4×120 | 192 | NAILING FLANGE ON BOTH SIDES |
| VSC4120FF | 4×120 | 192 | FLANGE FRONT |
| VSC4120R | 4×120 | 192 | NO FLANGE CONTINUOUS RETRO-FIT |
| VSC4120SL | 4×120 | 192 | SINGLE NAILING FLANGE |
| VSC4120SMC34 | 4×120 | 192 | STUCCO 3/4” |
| VSC4120SMC78 | 4×120 | 192 | STUCCO 7/8” |
| VSC5120 | 5×120 | 240 | NAILING FLANGE ON BOTH SIDES |
| VSC5120FF | 5×120 | 240 | FLANGE FRONT |
| VSC5120R | 5×120 | 240 | NO FLANGE CONTINUOUS RETRO-FIT |
| VSC5120SL | 5×120 | 240 | SINGLE NAILING FLANGE |
| VSC5120SMC34 | 5×120 | 240 | STUCCO 3/4” |
| VSC5120SMC78 | 5×120 | 240 | STUCCO 7/8” |
| VSC6120 | 6×120 | 288 | NAILING FLANGE ON BOTH SIDES |
| VSC6120FF | 6×120 | 288 | FLANGE FRONT |
| VSC6120R | 6×120 | 288 | NO FLANGE CONTINUOUS RETRO-FIT |
| VSC6120SL | 6×120 | 288 | SINGLE NAILING FLANGE |
| VSC6120SMC34 | 6×120 | 288 | STUCCO 3/4” |
| VSC6120SMC78 | 6×120 | 288 | STUCCO 7/8” |
| VSC25120 | 2.5×120 | 120 | NAILING FLANGE ON BOTH SIDES |
| VSC25120FF | 2.5×120 | 120 | FLANGE FRONT |
| VSC25120R | 2.5×120 | 120 | NO FLANGE CONTINUOUS RETRO-FIT |
| VSC25120SL | 2.5×120 | 120 | SINGLE NAILING FLANGE |
| VSC25120SMC34 | 2.5×120 | 120 | STUCCO 3/4” |
| VSC25120SMC78 | 2.5×120 | 120 | STUCCO 7/8” |
| VSC35120 | 3.5×120 | 168 | NAILING FLANGE ON BOTH SIDES |
| VSC35120FF | 3.5×120 | 168 | FLANGE FRONT |
| VSC35120R | 3.5×120 | 168 | NO FLANGE CONTINUOUS RETRO-FIT |
| VSC35120SL | 3.5×120 | 168 | SINGLE NAILING FLANGE |
| VSC35120SMC34 | 3.5×120 | 168 | STUCCO 3/4” |
| VSCS35120MC78 | 3.5×120 | 168 | STUCCO 7/8” |
NFVA: NET FREE VENT AREA. This indicates the amount of open ventilation, measured in square inches.
