Retrofits
All vents should be built to protect.

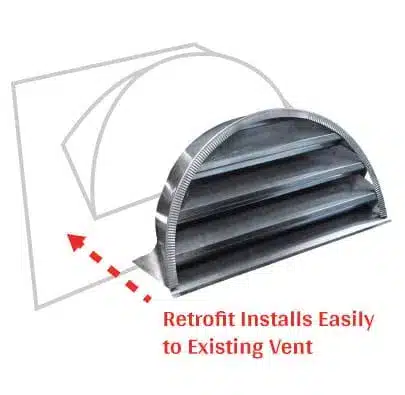

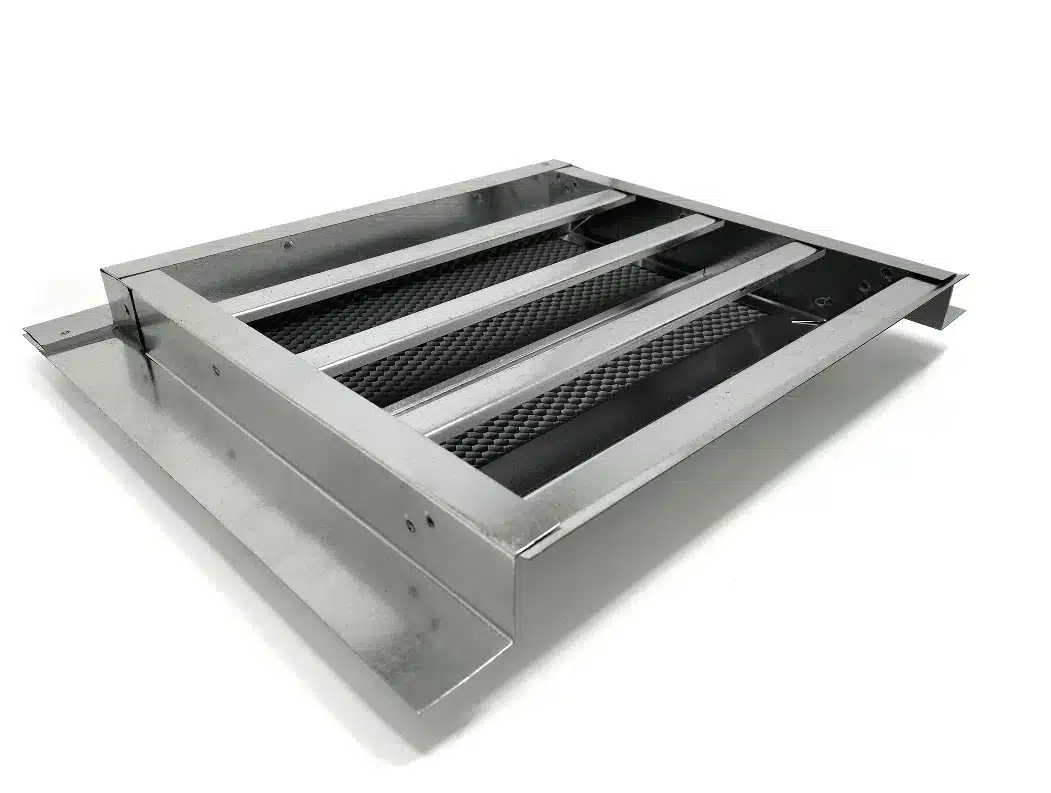

Vulcan Vent retrofit kits are available to easily install mesh screening and honeycomb intumescent coating (sold together) on any vent on the house providing the ultimate protection from dangerous embers and flames.
A safe home starts with venting.
Kits come in a variety of dimensions and can be custom made if necessary. Vulcan Vents retrofit kits include:

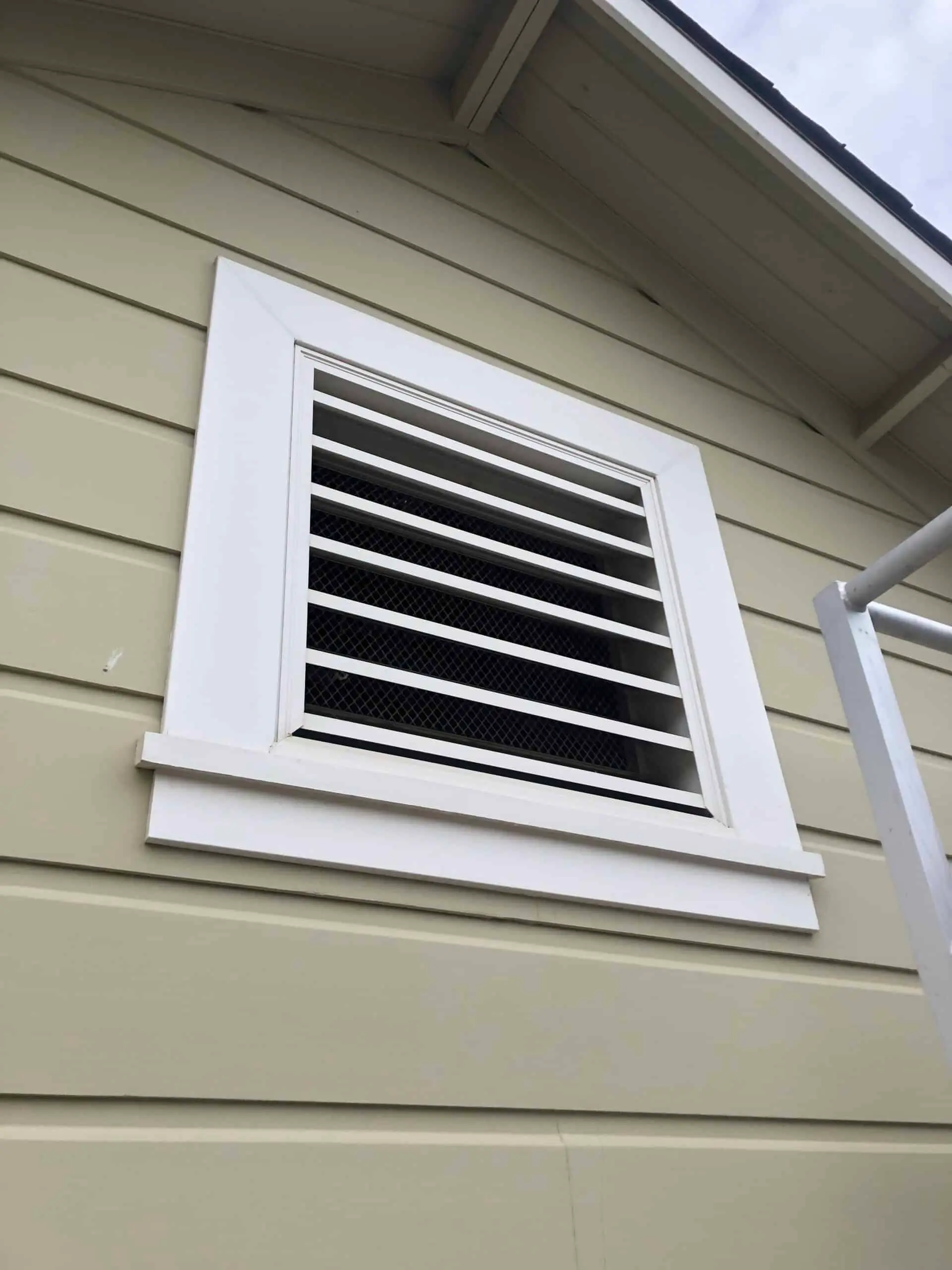

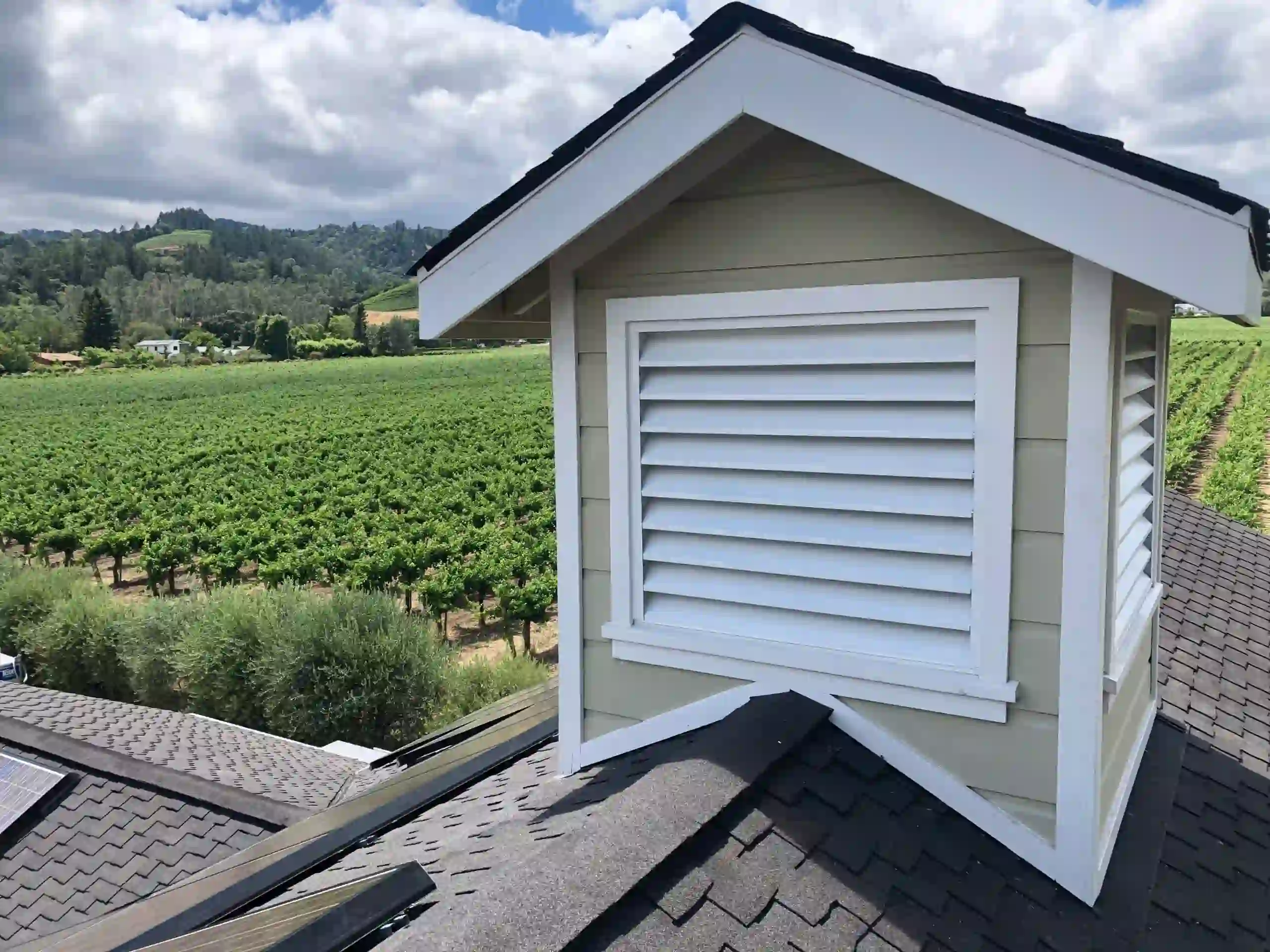

- Retrofit Gable End Vent/Eave Vent: Exterior

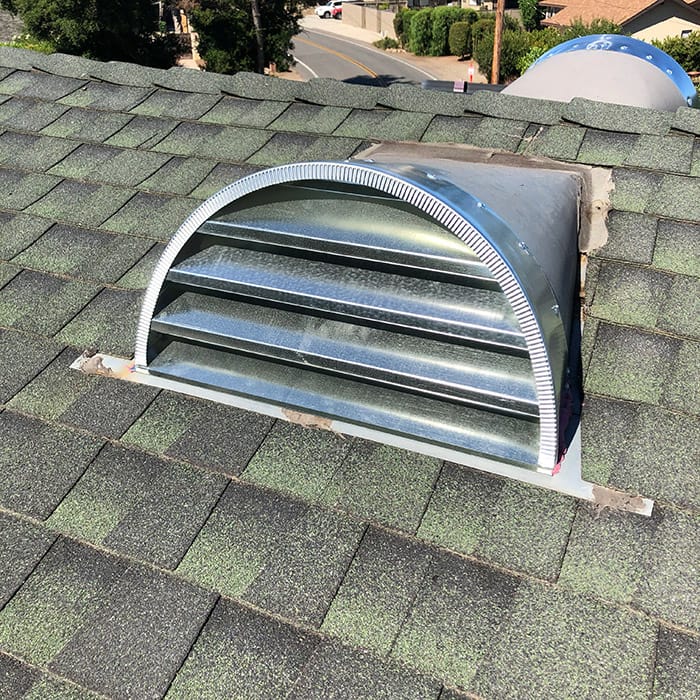

- Retrofit Half Round Dormers
- Retrofit Gable End Vent: Interior
- Continuous Vent Retrofits
- Soffit Vent/Ridge Vent Retrofits
- Retrofit Half Round Dormers
- VE (Vulcan Eave)
- Subflashing
- The Vulcan Sub Flashing can be used in conjunction with any other manufacturers’ dormer or roof vent and turn it into an ember and fire-safe vent
Protecting the most
vulnerable places on a home.
All vents on a home from roofing to the crawlspace must provide adequate ventilation and protection when it matters most. Vulcan Vents are meant to allow airflow while blocking vulnerable spaces from dangerous embers and flames when fire is near.
Elevate Protection with Cutting-Edge Fire Vents!
Baffle-free design
for efficient airflow.
Ember and fire-resistant vents are required under California’s Chapter 7A building codes located in high-risk fire zones otherwise known as the Wildland-Urban Interface (WUI). As such, Vulcan Vents are recommended for homes by the California State Fire Marshal (OSFM).
Vulcan Vent
Features

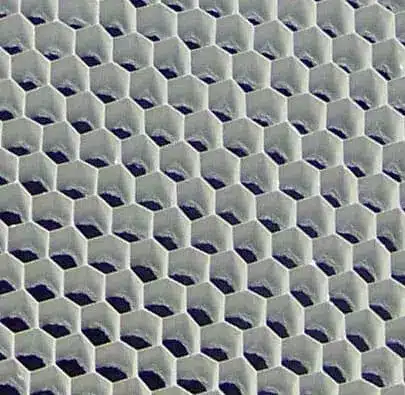

Honeycomb matrix closing technology with ember-catching screen mesh built into galvanized steel frame
Baffle-free design for maximum airflow (NFVA) to keep your home dry
Designed to meet the new California Building code State Fire Marshal (OSFM) 12 Chapter 7A of the California Wildland-Urban Interface (WUI) fire code program
Passed the American Society for Testing and Materials (ASTM) E2886 to effectively block ember entry
Use EverKem Fire Caulking

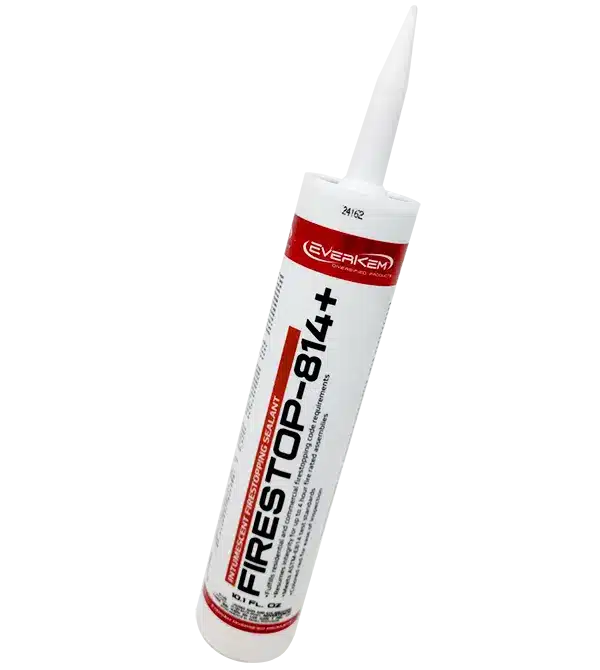

- We recommend using EverKem 814+, intumescent fire caulking with all installation of Vulcan Vents.
- Our round eave vents are the exception: EverKem 136, mortar based caulking should be used when mounting hardware isn’t an option and flanges are minimal.
- INSTALLATION: Prior to installing the vent, run a bead of EverKem behind the nailing flange to ensure an air tight seal where the vent meets the building material. This ensures that no gaps are present between the vent and your building material where flying embers might enter!
For ordering information, visit out our Store Locator for nearest retailers.
It’s time for your home to protect itself.
* For coastal environments, copper, stainless or powder coated finishes are highly recommended. *
Vent Types
Standard Finishes
G90 Galvanized, Stainless, Copper, Bonderized
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VDHR1224 | 12" x 24" HALF ROUND dormer VENT | 90 | Standard | N/A |
|
|
| VDHR1224R | 12" x 24" RETROFIT HALF ROUND dormer VENT W/ SOFT ZINC HOOD | 90 | Retrofit | N/A |
|
|
| VDHR918 | 9" x 18" HALF ROUND dormer VENT | 51 | Standard | N/A |
|
|
| VDHR918R | 9" x 18" RETROFIT HALF ROUND dormer VENT W/ SOFT ZINC HOOD | 51 | Retrofit | N/A |
|
|
| VDLR419 | 4" x 19" LOW PROFILE VENT "EYEBROW" | 52 | Standard | N/A |
|
|
| VE3514 | 3.5" x 14" TABBED EAVE VENT | 24 | Standard | 2x4 Rafters - 16" OC |
|
|
| VE3514RT | 3.5" x 14" REVERSE TAB EAVE VENT | 24 | Reverse Tab | 2x4 Rafters - 16" OC |
|
|
| VE3522 | 3.5" x 22" TABBED EAVE VENT | 41 | Standard | 2x4 Rafters - 24" OC |
|
|
| VE3522FB | 3.5" x 22" FOAM BACK FLANGE SET BACK 1-1/2" | 41 | Foam Back | 3.5 X 22 |
|
|
| VE3522FC | 3.5" x 22" FIBER CEMENT FLANGE recessed 3/8" | 41 | Fiber Cement | 3.5 X 22 |
|
|
| VE3522FF | 3.5" x 22" FLANGE FRONT | 41 | Standard | 3.5 X 22 |
|
|
| VE3522RT | 3.5" x 22" REVERSE TAB EAVE VENT | 41 | Reverse Tab | 2x4 Rafters - 24" OC |
|
|
| VE3522S | 3.5" x 22" STUCCO SET BACK 3/4" | 41 | Stucco | 3.5 X 22 |
|
|
| VE5514 | 5.5" x 14" TABBED EAVE VENT | 44 | Standard | 2x6 Rafters - 16" OC |
|
|
| VE5514RT | 5.5" x 14" REVERSE TAB EAVE VENT | 44 | Reverse Tab | 2x6 Rafters - 16" OC |
|
|
| VE5522 | 5.5" x 22" TABBED EAVE VENT | 75 | Standard | 2x6 Rafters - 24" OC |
|
|
| VE5522FB | 5.5" x 22" FOAM BACK FLANGE SET BACK 1-1/2" | 75 | Foam Back | 5.5 X 22 |
|
|
| VE5522FC | 5.5" x 22" FIBER CEMENT FLANGE recessed 3/8" | 75 | Fiber Cement | 5.5 X 22 |
|
|
| VE5522FF | 5.5" x 22" FLANGE FRONT | 75 | Standard | 5.5 X 22 |
|
|
| VE5522RT | 5.5" x 22" REVERSE TAB EAVE VENT | 75 | Reverse Tab | 2x6 Rafters - 24" OC |
|
|
| VE5522S | 5.5" x 22" STUCCO SET BACK 3/4" | 75 | Stucco | 5.5 X 22 |
|
|
| VE7514 | 7.5" x 14" TABBED EAVE VENT | 75 | Standard | 2x8 Rafters - 16" OC |
|
|
| VE7514RT | 7.5" x 14" REVERSE TAB EAVE VENT | 75 | Reverse Tab | 2x8 Rafters - 16" OC |
|
|
| VE7522 | 7.5" x 22" TABBED EAVE VENT | 119 | Standard | 2x8 Rafters - 24" OC |
|
|
| VE7522FB | 7.5" x 22" FOAM BACK FLANGE SET BACK 1-1/2" | 119 | Foam Back | 7.5 X 22 |
|
|
| VE7522FC | 7.5" x 22" FIBER CEMENT FLANGE recessed 3/8" | 119 | Fiber Cement | 7.5 X 22 |
|
|
| VE7522FF | 7.5" x 22" FLANGE FRONT | 119 | Standard | 7.5 X 22 |
|
|
| VE7522RT | 7.5" x 22" REVERSE TAB EAVE VENT | 119 | Reverse Tab | 2x8 Rafters - 24" OC |
|
|
| VE7522S | 7.5" x 22" STUCCO SET BACK 3/4" | 119 | Stucco | 7.5 X 22 |
|
|
| VER2 | 2" ROUND LOUVERED FACE FIRE VENT | 1 | Round | 2 Round Hole |
|
|
| VER2M | 2" ROUND MESH FACE FIRE VENT | 2 | Round | 2 Round Hole |
|
|
| VER3 | 3" ROUND LOUVERED FACE FIRE VENT | 2 | Round | 3 Round Hole |
|
|
| VER3M | 3" ROUND MESH FACE FIRE VENT | 4 | Round | 3 Round Hole |
|
|
| VER4 | 4" ROUND LOUVERED FACE FIRE VENT | 4 | Round | 4 Round Hole |
|
|
| VER4M | 4" ROUND MESH FACE FIRE VENT | 8 | Round | 4 Round Hole |
|
|
| VFS1824AV | 18" x 24" CRAWLSAPCE ACCESS, FLANGE FRONT | 177 | Access, Flange Front | 18 X 24 |
|
|
| VFS414FB | 4" x 14" FOAM BACK FLANGE SET BACK 1-1/2" | 24 | Foam Back | 3.5 X 13.5 |
|
|
| VFS414FC | 4" x 14" FIBER CEMENT FLANGE SET BACK 3/8" | 24 | Fiber Cement | 3.5 X 13.5 |
|
|
| VFS414FF | 4" x 14" FLANGE FRONT | 24 | Flange Front, Retrofit | 3.5 X 13.5 |
|
|
| VFS414S | 4" x 14" STUCCO SET BACK 3/4" | 24 | Stucco | 3.5 X 13.5 |
|
|
| VFS614FB | 6" x 14" FOAM BACK FLANGE SET BACK 1-1/2" | 41 | Foam Back | 5.5 X 13.5 |
|
|
| VFS614FC | 6" x 14" FIBER CEMENT FLANGE SET BACK 3/8" | 41 | Fiber Cement | 5.5 X 13.5 |
|
|
| VFS614FF | 6" x 14" FLANGE FRONT | 41 | Flange Front, Retrofit | 5.5 X 13.5 |
|
|
| VFS614LFF | 6" x 14" LOUVERED, FLANGE FRONT | 14.5 | Flange Front, Retrofit | 6 X 14 |
|
|
| VFS614S | 6" x 14" STUCCO SET BACK 3/4" | 41 | Stucco | 5.5 X 13.5 |
|
|
| VFS814FB | 8" x 14" FOAM BACK FLANGE SET BACK 1-1/2" | 62 | Foam Back | 7.5 X 13.5 |
|
|
| VFS814FC | 8" x 14" FIBER CEMENT FLANGE SET BACK 3/8" | 62 | Fiber Cement | 7.5 X 13.5 |
|
|
| VFS814FF | 8" x 14" FLANGE FRONT | 62 | Flange Front, Retrofit | 7.5 X 13.5 |
|
|
| VFS814S | 8" x 14" STUCCO SET BACK 3/4" | 62 | Stucco | 7.5 X 13.5 |
|
|
| VG1412FB | 14" x 12" FOAM BACK FLANGE recessed 1-1/2" | 58 | Foam Back | 14 X 12 |
|
|
| VG1412FC | 14" x 12" FIBER CEMENT FLANGE recessed 3/8" | 58 | Fiber Cement | 14 X 12 |
|
|
| VG1412FF | 14" x 12" FLANGE FRONT | 58 | Flange Front | 14 X 12 |
|
|
| VG1412FM | 14" x 12" FLANGE MIDDLE recessed 1-5/16" | 58 | Recessed | 14 X 12 |
|
|
| VG1412R | 14" x 12" RETROFIT FLANGE recessed 2-5/8" | 58 | Retrofit | 14 X 12 |
|
|
| VG1412S | 14" x 12" FLANGE SET BACK 3/4" STUCCO | 58 | Stucco | 14 X 12 |
|
|
| VG1418FB | 14" x 18" FOAM BACK FLANGE recessed 1-1/2" | 86 | Foam Back | 14 X 17.5 |
|
|
| VG1418FC | 14" x 18" FIBER CEMENT FLANGE recessed 3/8" | 86 | Fiber Cement | 14 X 17.5 |
|
|
| VG1418FF | 14" x 18" FLANGE FRONT | 86 | Flange Front | 14 X 17.5 |
|
|
| VG1418FM | 14" x 18" FLANGE MIDDLE recessed 1-5/16" | 86 | Recessed | 14 X 17.5 |
|
|
| VG1418R | 14" x 18" RETROFIT FLANGE recessed 2-5/8" | 86 | Retrofit | 14 X 17.5 |
|
|
| VG1418S | 14" x 18" FLANGE SET BACK 3/4" STUCCO | 86 | Stucco | 14 X 17.5 |
|
|
| VG1424FB | 14" x 24" FOAM BACK FLANGE recessed 1-1/2" | 115 | Foam Back | 14 X 23.5 |
|
|
| VG1424FC | 14" x 24" FIBER CEMENT FLANGE recessed 3/8" | 115 | Fiber Cement | 14 X 23.5 |
|
|
| VG1424FF | 14" x 24" FLANGE FRONT | 115 | Standard | 14 X 23.5 |
|
|
| VG1424FM | 14" x 24" FLANGE MIDDLE recessed 1-5/16" | 115 | Recessed | 14 X 23.5 |
|
|
| VG1424R | 14" x 24" RETROFIT FLANGE recessed 2-5/8" | 115 | Retrofit | 14 X 23.5 |
|
|
| VG1424S | 14" x 24" FLANGE SET BACK 3/4" STUCCO | 115 | Stucco | 14 X 23.5 |
|
|
| VG148FB | 14" x 8" FOAM BACK FLANGE recessed 1-1/2" | 29 | Foam Back | 14 X 7.5 |
|
|
| VG148FC | 14" x 8" FIBER CEMENT FLANGE recessed 3/8" | 29 | Fiber Cement | 14 X 7.5 |
|
|
| VG148FF | 14" x 8" FLANGE FRONT | 29 | Flange Front | 14 X 7.5 |
|
|
| VG148FM | 14" x 8" FLANGE MIDDLE recessed 1-5/16" | 29 | Recessed | 14 X 7.5 |
|
|
| VG148R | 14" x 8" RETROFIT FLANGE recessed 2-5/8" | 29 | Retrofit | 14 X 7.5 |
|
|
| VG148S | 14" x 8" FLANGE SET BACK 3/4" STUCCO | 29 | Stucco | 14 X 7.5 |
|
|
| VM1424 | 14" x 24" NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
| VM2424 | 24" x 24" NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
| VM4824 | 48" x 24" NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
| VSB1212 | 12" x 12" WITH 3" FLANGES ON ALL 4 SIDES | 105 | Sub Base | 13 X 13 |
|
|
| VSB7519 | 7.5" x 19" WITH 3" FLANGES ON ALL 4 SIDES | 108 | Sub Base | 8 X 20 |
|
|
| VSB8585 | 8.5" x 8.5" WITH 3" FLANGES ON ALL 4 SIDES | 54 | Sub Base | 10 X 10 |
|
|
| VSC1120RV | 1" x 120" STANDING SEAM RIDGE "J" CHANNEL | 50 | Ridge/Wall | N/A |
|
|
| VSC2120 | 2" x 120" NAILING FLANGE ON BOTH SIDES | 96 | Standard | N/A |
|
|
| VSC2120FF | 2" x 120" FLANGE FRONT | 96 | Flange Front | 2" cut to length |
|
|
| VSC2120R | 2" x 120" NO FLANGE CONTINUOUS RETROFIT | 96 | Retrofit | N/A |
|
|
| VSC2120SL | 2" x 120" SINGLE NAILING FLANGE | 96 | Nailing | N/A |
|
|
| VSC2120SMC34 | 2" x 120" STUCCO MILCOR 3/4" | 96 | Stucco | N/A |
|
|
| VSC2120SMC78 | 2" x 120" STUCCO MILCOR 7/8" | 96 | Stucco | N/A |
|
|
| VSC25120 | 2.5" x 120" NAILING FLANGE ON BOTH SIDES | 120 | Standard | N/A |
|
|
| VSC25120FF | 2.5" x 120" FLANGE FRONT | 120 | Flange Front | 2.5" X cut to length |
|
|
| VSC25120R | 2.5" x 120" NO FLANGE CONTINUOUS RETROFIT | 120 | Retrofit | N/A |
|
|
| VSC25120SL | 2.5" x 120" SINGLE NAILING FLANGE | 120 | Nailing | N/A |
|
|
| VSC25120SMC34 | 2.5" x 120" STUCCO MILCOR 3/4" | 120 | Stucco | N/A |
|
|
| VSC25120SMC78 | 2.5" x 120" STUCCO MILCOR 7/8" | 120 | Stucco | N/A |
|
|
| VSC3120 | 3" x 120" NAILING FLANGE ON BOTH SIDES | 144 | Standard | N/A |
|
|
| VSC3120FF | 3" x 120" FLANGE FRONT | 144 | Flange Front | 3" X cut to length |
|
|
| VSC3120R | 3" x 120" NO FLANGE CONTINUOUS RETROFIT | 144 | Retrofit | N/A |
|
|
| VSC3120SL | 3" x 120" SINGLE NAILING FLANGE | 144 | Nailing | N/A |
|
|
| VSC3120SMC34 | 3" x 120" STUCCO MILCOR 3/4" | 144 | Stucco | N/A |
|
|
| VSC3120SMC78 | 3" x 120" STUCCO MILCOR 7/8" | 144 | Stucco | N/A |
|
|
| VSC34120RS | 3/4" x 120" RAINSCREEN "J" CHANNEL | 39 | Ridge/Wall | N/A |
|
|
| VSC35120 | 3.5" x 120" NAILING FLANGE ON BOTH SIDES | 168 | Standard | N/A |
|
|
| VSC35120FF | 3.5" x 120" FLANGE FRONT | 168 | Flange Front | 3.5" X cut to length |
|
|
| VSC35120SL | 3.5" x 120" SINGLE NAILING FLANGE | 168 | Nailing | N/A |
|
|
| VSC35120SMC34 | 3.5" x 120" STUCCO MILCOR 3/4" | 168 | Stucco | N/A |
|
|
| VSC35120SMC78 | 3.5" x 120" STUCCO MILCOR 7/8" | 168 | Stucco | N/A |
|
|
| VSC4108IF | 4" X 108" SOFFIT VENT-INSPECTION | 172 | Flange Front, Inspection | 4.25" x 108.125" |
|
|
| VSC4120 | 4" x 120" NAILING FLANGE ON BOTH SIDES | 192 | Standard | N/A |
|
|
| VSC4120FF | 4" x 120" FLANGE FRONT | 192 | Flange Front | 4" X cut to length |
|
|
| VSC4120IF | 4" X 120" INSPECTION VENT - BALCONY & DECK | 192 | Flange Front, Inspection | 4.25" x 120.125" |
|
|
| VSC4120R | 4" x 120" NO FLANGE CONTINUOUS RETROFIT | 192 | Retrofit | N/A |
|
|
| VSC4120SL | 4" x 120" SINGLE NAILING FLANGE | 192 | Nailing | N/A |
|
|
| VSC4120SMC34 | 4" x 120" STUCCO MILCOR 3/4" | 192 | Stucco | N/A |
|
|
| VSC4120SMC78 | 4" x 120" STUCCO MILCOR 7/8" | 192 | Stucco | N/A |
|
|
| VSC424IF | 4" X 24" INSPECTION VENT - BALCONY & DECK | 39 | Flange Front, Inspection | 4.25" x 24.125" |
|
|
| VSC436IF | 4" X 36"INSPECTION VENT - BALCONY & DECK | 58 | Flange Front | 4.25" x 36.125" |
|
|
| VSC448IF | 4" X 48" SOFFIT VENT-INSPECTION | 77 | Flange Front, Inspection | 4.25" x 48.125" |
|
|
| VSC460IF | 4" X 60" INSPECTION VENT - BALCONY & DECK | 96 | Flange Front, Inspection | 4.25" x 60.125" |
|
|
| VSC472IF | 4" X 72" INSPECTION VENT - BALCONY & DECK | 115 | Flange Front, Inspection | 4.25" x 72.125" |
|
|
| VSC484IF | 4" X 84" SOFFIT VENT-INSPECTION | 135 | Flange Front, Inspection | 4.25" x 84.125" |
|
|
| VSC496IF | 4" X 96" SOFFIT VENT-INSPECTION | 153 | Flange Front, Inspection | 4.25" x 96.125" |
|
|
| VSC5120 | 5" x 120" NAILING FLANGE ON BOTH SIDES | 240 | Standard | N/A |
|
|
| VSC5120FF | 5" x 120" FLANGE FRONT | 240 | Flange Front | 5" X cut to length |
|
|
| VSC5120R | 5" x 120" NO FLANGE CONTINUOUS RETROFIT | 240 | Retrofit | N/A |
|
|
| VSC5120SL | 5" x 120" SINGLE NAILING FLANGE | 240 | Nailing | N/A |
|
|
| VSC5120SMC34 | 5" x 120" STUCCO MILCOR 3/4" | 240 | Stucco | N/A |
|
|
| VSC5120SMC78 | 5" x 120" STUCCO MILCOR 7/8" | 240 | Stucco | N/A |
|
|
| VSC6120 | 6" x 120" NAILING FLANGE ON BOTH SIDES | 288 | Standard | N/A |
|
|
| VSC6120FF | 6" x 120" FLANGE FRONT | 288 | Flange Front | 6" X cut to length |
|
|
| VSC6120R | 6" x 120" NO FLANGE CONTINUOUS RETROFIT | 288 | Retrofit | N/A |
|
|
| VSC6120SL | 6" x 120" SINGLE NAILING FLANGE | 288 | Nailing | N/A |
|
|
| VSC6120SMC34 | 6" x 120" STUCCO MILCOR 3/4" | 288 | Stucco | N/A |
|
|
| VSC6120SMC78 | 6" x 120" STUCCO MILCOR 7/8" | 288 | Stucco | N/A |
|
|
