Architects' Top Choice For Fire Resistant Vents
At Vulcan Vents, we are dedicated to providing architects like you with vents that not only meet, but exceed your design and functionality expectations. As a trusted vent manufacturer in the industry, we take immense pride in providing a wide range of fire resistant vents that comply with California building code standards and can be integrated into your different architectural projects. Moreover, we have trusted manufacturing partners like New Cal Metals and FireStorm for over a decade.
Get The CAD File Now!
*Files are in vector PDF format
Reliable Partner for Architects
We understand the critical role that vents play in architectural projects, and that’s why we have gone the extra mile to deliver the best vent products since 2007. When architects choose Vulcan Vents, they choose reliability, innovation, and a partner dedicated to helping them achieve their architectural brilliance.
The First Shield Against Embers and Wildfire Flames
Are you an architect in search of a vent for your client? Don’t Worry; we’ve got you covered.
Enhancing Building Safety Through Architect-Centric Vents
Architects understand that quality is paramount when selecting vents for their clients. Our vents adhere to industry standards, simplifying the integration process for architects. Our primary objective is to equip architects with the vents they need to enhance building safety, particularly against the threat of wildfires. From continuous to balcony inspection vents, we provide architects with all types of vents. Our balcony inspection vents, in particular, are designed for SB-326 & SB-721 with 1-hour fire rated.
Different Types of Vents We Provide
Architects’ Preferred Choices from Our Range of Vents

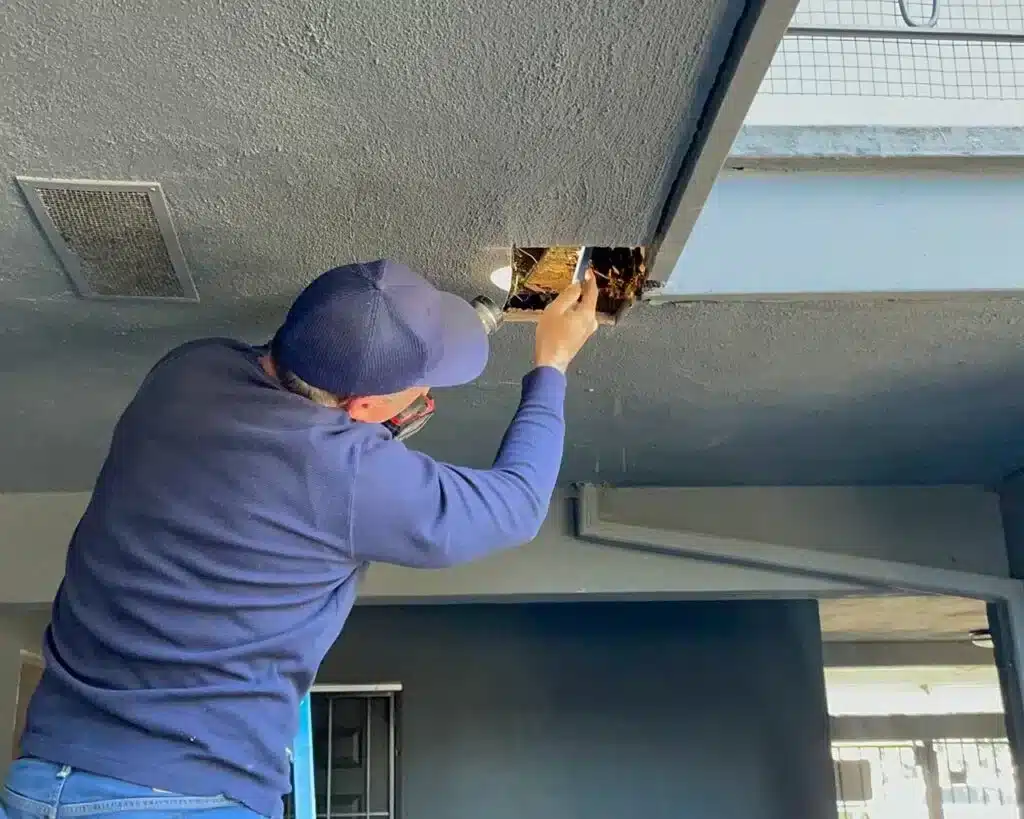

Balcony Inspection Vents
Our Diverse Range of Vent Manufacturing Products
If you are an architect then you can select an extensive range of our top-quality ventilation manufacturing products designed to enhance the air quality and comfort of living spaces. Our range includes a variety of innovative solutions, from foundation to balcony inspection vents and more with different flange styles & cut outs.
Flange Styles
Standard Finishes
G90 Galvanized, Stainless, Copper, Bonderized
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VG1412FB | 14″ x 12″ FOAM BACK FLANGE recessed 1-1/2″ | 58 | Foam Back | 14 X 12 |
|
|
| VG1412FC | 14″ x 12″ FIBER CEMENT FLANGE recessed 3/8″ | 58 | Fiber Cement | 14 X 12 |
|
|
| VG1412FF | 14″ x 12″ FLANGE FRONT | 58 | Flange Front | 14 X 12 |
|
|
| VG1412FM | 14″ x 12″ FLANGE MIDDLE recessed 1-5/16″ | 58 | Recessed | 14 X 12 |
|
|
| VG1412R | 14″ x 12″ RETROFIT FLANGE recessed 2-5/8″ | 58 | Retrofit | 14 X 12 |
|
|
| VG1412S | 14″ x 12″ FLANGE SET BACK 3/4″ STUCCO | 58 | Stucco | 14 X 12 |
|
|
| VG1418FB | 14″ x 18″ FOAM BACK FLANGE recessed 1-1/2″ | 86 | Foam Back | 14 X 17.5 |
|
|
| VG1418FC | 14″ x 18″ FIBER CEMENT FLANGE recessed 3/8″ | 86 | Fiber Cement | 14 X 17.5 |
|
|
| VG1418FF | 14″ x 18″ FLANGE FRONT | 86 | Flange Front | 14 X 17.5 |
|
|
| VG1418FM | 14″ x 18″ FLANGE MIDDLE recessed 1-5/16″ | 86 | Recessed | 14 X 17.5 |
|
|
| VG1418R | 14″ x 18″ RETROFIT FLANGE recessed 2-5/8″ | 86 | Retrofit | 14 X 17.5 |
|
|
| VG1418S | 14″ x 18″ FLANGE SET BACK 3/4″ STUCCO | 86 | Stucco | 14 X 17.5 |
|
|
| VG1424FB | 14″ x 24″ FOAM BACK FLANGE recessed 1-1/2″ | 115 | Foam Back | 14 X 23.5 |
|
|
| VG1424FC | 14″ x 24″ FIBER CEMENT FLANGE recessed 3/8″ | 115 | Fiber Cement | 14 X 23.5 |
|
|
| VG1424FF | 14″ x 24″ FLANGE FRONT | 115 | Standard | 14 X 23.5 |
|
|
| VG1424FM | 14″ x 24″ FLANGE MIDDLE recessed 1-5/16″ | 115 | Recessed | 14 X 23.5 |
|
|
| VG1424R | 14″ x 24″ RETROFIT FLANGE recessed 2-5/8″ | 115 | Retrofit | 14 X 23.5 |
|
|
| VG1424S | 14″ x 24″ FLANGE SET BACK 3/4″ STUCCO | 115 | Stucco | 14 X 23.5 |
|
|
| VG148FB | 14″ x 8″ FOAM BACK FLANGE recessed 1-1/2″ | 29 | Foam Back | 14 X 7.5 |
|
|
| VG148FC | 14″ x 8″ FIBER CEMENT FLANGE recessed 3/8″ | 29 | Fiber Cement | 14 X 7.5 |
|
|
| VG148FF | 14″ x 8″ FLANGE FRONT | 29 | Flange Front | 14 X 7.5 |
|
|
| VG148FM | 14″ x 8″ FLANGE MIDDLE recessed 1-5/16″ | 29 | Recessed | 14 X 7.5 |
|
|
| VG148R | 14″ x 8″ RETROFIT FLANGE recessed 2-5/8″ | 29 | Retrofit | 14 X 7.5 |
|
|
| VG148S | 14″ x 8″ FLANGE SET BACK 3/4″ STUCCO | 29 | Stucco | 14 X 7.5 |
|
|
| VM1424 | 14″ x 24″ NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
| VM2424 | 24″ x 24″ NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
| VM4824 | 48″ x 24″ NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
Flange Styles
Standard Finishes
G90 Galvanized, Stainless, Copper, Bonderized
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VE3522FB | 3.5″ x 22″ FOAM BACK FLANGE SET BACK 1-1/2″ | 41 | Foam Back | 3.5 X 22 |
|
|
| VE3522FC | 3.5″ x 22″ FIBER CEMENT FLANGE recessed 3/8″ | 41 | Fiber Cement | 3.5 X 22 |
|
|
| VE3522FF | 3.5″ x 22″ FLANGE FRONT | 41 | Standard | 3.5 X 22 |
|
|
| VE3522S | 3.5″ x 22″ STUCCO SET BACK 3/4″ | 41 | Stucco | 3.5 X 22 |
|
|
| VE5522FB | 5.5″ x 22″ FOAM BACK FLANGE SET BACK 1-1/2″ | 75 | Foam Back | 5.5 X 22 |
|
|
| VE5522FC | 5.5″ x 22″ FIBER CEMENT FLANGE recessed 3/8″ | 75 | Fiber Cement | 5.5 X 22 |
|
|
| VE5522FF | 5.5″ x 22″ FLANGE FRONT | 75 | Standard | 5.5 X 22 |
|
|
| VE5522S | 5.5″ x 22″ STUCCO SET BACK 3/4″ | 75 | Stucco | 5.5 X 22 |
|
|
| VE7522FB | 7.5″ x 22″ FOAM BACK FLANGE SET BACK 1-1/2″ | 119 | Foam Back | 7.5 X 22 |
|
|
| VE7522FC | 7.5″ x 22″ FIBER CEMENT FLANGE recessed 3/8″ | 119 | Fiber Cement | 7.5 X 22 |
|
|
| VE7522FF | 7.5″ x 22″ FLANGE FRONT | 119 | Standard | 7.5 X 22 |
|
|
| VE7522S | 7.5″ x 22″ STUCCO SET BACK 3/4″ | 119 | Stucco | 7.5 X 22 |
|
|
| VFS414FB | 4″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 24 | Foam Back | 3.5 X 13.5 |
|
|
| VFS414FC | 4″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 24 | Fiber Cement | 3.5 X 13.5 |
|
|
| VFS414FF | 4″ x 14″ FLANGE FRONT | 24 | Flange Front, Retrofit | 3.5 X 13.5 |
|
|
| VFS414S | 4″ x 14″ STUCCO SET BACK 3/4″ | 24 | Stucco | 3.5 X 13.5 |
|
|
| VFS614FB | 6″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 41 | Foam Back | 5.5 X 13.5 |
|
|
| VFS614FC | 6″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 41 | Fiber Cement | 5.5 X 13.5 |
|
|
| VFS614FF | 6″ x 14″ FLANGE FRONT | 41 | Flange Front, Retrofit | 5.5 X 13.5 |
|
|
| VFS614S | 6″ x 14″ STUCCO SET BACK 3/4″ | 41 | Stucco | 5.5 X 13.5 |
|
|
| VFS814FB | 8″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 62 | Foam Back | 7.5 X 13.5 |
|
|
| VFS814FC | 8″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 62 | Fiber Cement | 7.5 X 13.5 |
|
|
| VFS814FF | 8″ x 14″ FLANGE FRONT | 62 | Flange Front, Retrofit | 7.5 X 13.5 |
|
|
| VFS814S | 8″ x 14″ STUCCO SET BACK 3/4″ | 62 | Stucco | 7.5 X 13.5 |
|
|
Vent Types
Standard Finishes
G90 Galvanized, Stainless, Copper, Bonderized
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VDHR1224 | 12″ x 24″ HALF ROUND dormer VENT | 90 | Standard | N/A |
|
|
| VDHR1224R | 12″ x 24″ RETROFIT HALF ROUND dormer VENT W/ SOFT ZINC HOOD | 90 | Retrofit | N/A |
|
|
| VDHR918 | 9″ x 18″ HALF ROUND dormer VENT | 51 | Standard | N/A |
|
|
| VDHR918R | 9″ x 18″ RETROFIT HALF ROUND dormer VENT W/ SOFT ZINC HOOD | 51 | Retrofit | N/A |
|
|
| VDLR419 | 4″ x 19″ LOW PROFILE VENT “EYEBROW” | 52 | Standard | N/A |
|
|
| VE3514 | 3.5″ x 14″ TABBED EAVE VENT | 24 | Standard | 2×4 Rafters – 16″ OC |
|
|
| VE3514RT | 3.5″ x 14″ REVERSE TAB EAVE VENT | 24 | Reverse Tab | 2×4 Rafters – 16″ OC |
|
|
| VE3522 | 3.5″ x 22″ TABBED EAVE VENT | 41 | Standard | 2×4 Rafters – 24″ OC |
|
|
| VE3522FB | 3.5″ x 22″ FOAM BACK FLANGE SET BACK 1-1/2″ | 41 | Foam Back | 3.5 X 22 |
|
|
| VE3522FC | 3.5″ x 22″ FIBER CEMENT FLANGE recessed 3/8″ | 41 | Fiber Cement | 3.5 X 22 |
|
|
| VE3522FF | 3.5″ x 22″ FLANGE FRONT | 41 | Standard | 3.5 X 22 |
|
|
| VE3522RT | 3.5″ x 22″ REVERSE TAB EAVE VENT | 41 | Reverse Tab | 2×4 Rafters – 24″ OC |
|
|
| VE3522S | 3.5″ x 22″ STUCCO SET BACK 3/4″ | 41 | Stucco | 3.5 X 22 |
|
|
| VE5514 | 5.5″ x 14″ TABBED EAVE VENT | 44 | Standard | 2×6 Rafters – 16″ OC |
|
|
| VE5514RT | 5.5″ x 14″ REVERSE TAB EAVE VENT | 44 | Reverse Tab | 2×6 Rafters – 16″ OC |
|
|
| VE5522 | 5.5″ x 22″ TABBED EAVE VENT | 75 | Standard | 2×6 Rafters – 24″ OC |
|
|
| VE5522FB | 5.5″ x 22″ FOAM BACK FLANGE SET BACK 1-1/2″ | 75 | Foam Back | 5.5 X 22 |
|
|
| VE5522FC | 5.5″ x 22″ FIBER CEMENT FLANGE recessed 3/8″ | 75 | Fiber Cement | 5.5 X 22 |
|
|
| VE5522FF | 5.5″ x 22″ FLANGE FRONT | 75 | Standard | 5.5 X 22 |
|
|
| VE5522RT | 5.5″ x 22″ REVERSE TAB EAVE VENT | 75 | Reverse Tab | 2×6 Rafters – 24″ OC |
|
|
| VE5522S | 5.5″ x 22″ STUCCO SET BACK 3/4″ | 75 | Stucco | 5.5 X 22 |
|
|
| VE7514 | 7.5″ x 14″ TABBED EAVE VENT | 75 | Standard | 2×8 Rafters – 16″ OC |
|
|
| VE7514RT | 7.5″ x 14″ REVERSE TAB EAVE VENT | 75 | Reverse Tab | 2×8 Rafters – 16″ OC |
|
|
| VE7522 | 7.5″ x 22″ TABBED EAVE VENT | 119 | Standard | 2×8 Rafters – 24″ OC |
|
|
| VE7522FB | 7.5″ x 22″ FOAM BACK FLANGE SET BACK 1-1/2″ | 119 | Foam Back | 7.5 X 22 |
|
|
| VE7522FC | 7.5″ x 22″ FIBER CEMENT FLANGE recessed 3/8″ | 119 | Fiber Cement | 7.5 X 22 |
|
|
| VE7522FF | 7.5″ x 22″ FLANGE FRONT | 119 | Standard | 7.5 X 22 |
|
|
| VE7522RT | 7.5″ x 22″ REVERSE TAB EAVE VENT | 119 | Reverse Tab | 2×8 Rafters – 24″ OC |
|
|
| VE7522S | 7.5″ x 22″ STUCCO SET BACK 3/4″ | 119 | Stucco | 7.5 X 22 |
|
|
| VER2 | 2″ ROUND LOUVERED FACE FIRE VENT | 1 | Round | 2 Round Hole |
|
|
| VER2M | 2″ ROUND MESH FACE FIRE VENT | 2 | Round | 2 Round Hole |
|
|
| VER3 | 3″ ROUND LOUVERED FACE FIRE VENT | 2 | Round | 3 Round Hole |
|
|
| VER3M | 3″ ROUND MESH FACE FIRE VENT | 4 | Round | 3 Round Hole |
|
|
| VER4 | 4″ ROUND LOUVERED FACE FIRE VENT | 4 | Round | 4 Round Hole |
|
|
| VER4M | 4″ ROUND MESH FACE FIRE VENT | 8 | Round | 4 Round Hole |
|
|
| VFS414FB | 4″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 24 | Foam Back | 3.5 X 13.5 |
|
|
| VFS414FC | 4″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 24 | Fiber Cement | 3.5 X 13.5 |
|
|
| VFS414FF | 4″ x 14″ FLANGE FRONT | 24 | Flange Front, Retrofit | 3.5 X 13.5 |
|
|
| VFS414S | 4″ x 14″ STUCCO SET BACK 3/4″ | 24 | Stucco | 3.5 X 13.5 |
|
|
| VFS614FB | 6″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 41 | Foam Back | 5.5 X 13.5 |
|
|
| VFS614FC | 6″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 41 | Fiber Cement | 5.5 X 13.5 |
|
|
| VFS614FF | 6″ x 14″ FLANGE FRONT | 41 | Flange Front, Retrofit | 5.5 X 13.5 |
|
|
| VFS614LFF | 6″ x 14″ LOUVERED, FLANGE FRONT | 14.5 | Flange Front, Retrofit | 6 X 14 |
|
|
| VFS614S | 6″ x 14″ STUCCO SET BACK 3/4″ | 41 | Stucco | 5.5 X 13.5 |
|
|
| VFS814FB | 8″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 62 | Foam Back | 7.5 X 13.5 |
|
|
| VFS814FC | 8″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 62 | Fiber Cement | 7.5 X 13.5 |
|
|
| VFS814FF | 8″ x 14″ FLANGE FRONT | 62 | Flange Front, Retrofit | 7.5 X 13.5 |
|
|
| VFS814S | 8″ x 14″ STUCCO SET BACK 3/4″ | 62 | Stucco | 7.5 X 13.5 |
|
|
| VG1412FB | 14″ x 12″ FOAM BACK FLANGE recessed 1-1/2″ | 58 | Foam Back | 14 X 12 |
|
|
| VG1412FC | 14″ x 12″ FIBER CEMENT FLANGE recessed 3/8″ | 58 | Fiber Cement | 14 X 12 |
|
|
| VG1412FF | 14″ x 12″ FLANGE FRONT | 58 | Flange Front | 14 X 12 |
|
|
| VG1412FM | 14″ x 12″ FLANGE MIDDLE recessed 1-5/16″ | 58 | Recessed | 14 X 12 |
|
|
| VG1412R | 14″ x 12″ RETROFIT FLANGE recessed 2-5/8″ | 58 | Retrofit | 14 X 12 |
|
|
| VG1412S | 14″ x 12″ FLANGE SET BACK 3/4″ STUCCO | 58 | Stucco | 14 X 12 |
|
|
| VG1418FB | 14″ x 18″ FOAM BACK FLANGE recessed 1-1/2″ | 86 | Foam Back | 14 X 17.5 |
|
|
| VG1418FC | 14″ x 18″ FIBER CEMENT FLANGE recessed 3/8″ | 86 | Fiber Cement | 14 X 17.5 |
|
|
| VG1418FF | 14″ x 18″ FLANGE FRONT | 86 | Flange Front | 14 X 17.5 |
|
|
| VG1418FM | 14″ x 18″ FLANGE MIDDLE recessed 1-5/16″ | 86 | Recessed | 14 X 17.5 |
|
|
| VG1418R | 14″ x 18″ RETROFIT FLANGE recessed 2-5/8″ | 86 | Retrofit | 14 X 17.5 |
|
|
| VG1418S | 14″ x 18″ FLANGE SET BACK 3/4″ STUCCO | 86 | Stucco | 14 X 17.5 |
|
|
| VG1424FB | 14″ x 24″ FOAM BACK FLANGE recessed 1-1/2″ | 115 | Foam Back | 14 X 23.5 |
|
|
| VG1424FC | 14″ x 24″ FIBER CEMENT FLANGE recessed 3/8″ | 115 | Fiber Cement | 14 X 23.5 |
|
|
| VG1424FF | 14″ x 24″ FLANGE FRONT | 115 | Standard | 14 X 23.5 |
|
|
| VG1424FM | 14″ x 24″ FLANGE MIDDLE recessed 1-5/16″ | 115 | Recessed | 14 X 23.5 |
|
|
| VG1424R | 14″ x 24″ RETROFIT FLANGE recessed 2-5/8″ | 115 | Retrofit | 14 X 23.5 |
|
|
| VG1424S | 14″ x 24″ FLANGE SET BACK 3/4″ STUCCO | 115 | Stucco | 14 X 23.5 |
|
|
| VG148FB | 14″ x 8″ FOAM BACK FLANGE recessed 1-1/2″ | 29 | Foam Back | 14 X 7.5 |
|
|
| VG148FC | 14″ x 8″ FIBER CEMENT FLANGE recessed 3/8″ | 29 | Fiber Cement | 14 X 7.5 |
|
|
| VG148FF | 14″ x 8″ FLANGE FRONT | 29 | Flange Front | 14 X 7.5 |
|
|
| VG148FM | 14″ x 8″ FLANGE MIDDLE recessed 1-5/16″ | 29 | Recessed | 14 X 7.5 |
|
|
| VG148R | 14″ x 8″ RETROFIT FLANGE recessed 2-5/8″ | 29 | Retrofit | 14 X 7.5 |
|
|
| VG148S | 14″ x 8″ FLANGE SET BACK 3/4″ STUCCO | 29 | Stucco | 14 X 7.5 |
|
|
| VM1424 | 14″ x 24″ NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
| VM2424 | 24″ x 24″ NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
| VM4824 | 48″ x 24″ NFVA DEPENDANT ON OPENINGS | Dependant | Retrofit, Vulcan Matrix | N/A |
|
|
| VSB1212 | 12″ x 12″ WITH 3″ FLANGES ON ALL 4 SIDES | 105 | Sub Base | 13 X 13 |
|
|
| VSB7519 | 7.5″ x 19″ WITH 3″ FLANGES ON ALL 4 SIDES | 108 | Sub Base | 8 X 20 |
|
|
| VSB8585 | 8.5″ x 8.5″ WITH 3″ FLANGES ON ALL 4 SIDES | 54 | Sub Base | 10 X 10 |
|
|
| VSC1120RV | 1″ x 120″ STANDING SEEM RIDGE FLANGE | 50 | Standard | N/A |
|
|
| VSC2120 | 2″ x 120″ NAILING FLANGE ON BOTH SIDES | 96 | Standard | N/A |
|
|
| VSC2120FF | 2″ x 120″ FLANGE FRONT | 96 | Flange Front | 2″ cut to length |
|
|
| VSC2120R | 2″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 96 | Retrofit | N/A |
|
|
| VSC2120SL | 2″ x 120″ SINGLE NAILING FLANGE | 96 | Nailing | N/A |
|
|
| VSC2120SMC34 | 2″ x 120″ STUCCO MILCOR 3/4″ | 96 | Stucco | N/A |
|
|
| VSC2120SMC78 | 2″ x 120″ STUCCO MILCOR 7/8″ | 96 | Stucco | N/A |
|
|
| VSC25120 | 2.5″ x 120″ NAILING FLANGE ON BOTH SIDES | 120 | Standard | N/A |
|
|
| VSC25120FF | 2.5″ x 120″ FLANGE FRONT | 120 | Flange Front | 2.5″ X cut to length |
|
|
| VSC25120R | 2.5″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 120 | Retrofit | N/A |
|
|
| VSC25120SL | 2.5″ x 120″ SINGLE NAILING FLANGE | 120 | Nailing | N/A |
|
|
| VSC25120SMC34 | 2.5″ x 120″ STUCCO MILCOR 3/4″ | 120 | Stucco | N/A |
|
|
| VSC25120SMC78 | 2.5″ x 120″ STUCCO MILCOR 7/8″ | 120 | Stucco | N/A |
|
|
| VSC3120 | 3″ x 120″ NAILING FLANGE ON BOTH SIDES | 144 | Standard | N/A |
|
|
| VSC3120FF | 3″ x 120″ FLANGE FRONT | 144 | Flange Front | 3″ X cut to length |
|
|
| VSC3120R | 3″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 144 | Retrofit | N/A |
|
|
| VSC3120SL | 3″ x 120″ SINGLE NAILING FLANGE | 144 | Nailing | N/A |
|
|
| VSC3120SMC34 | 3″ x 120″ STUCCO MILCOR 3/4″ | 144 | Stucco | N/A |
|
|
| VSC3120SMC78 | 3″ x 120″ STUCCO MILCOR 7/8″ | 144 | Stucco | N/A |
|
|
| VSC35120 | 3.5″ x 120″ NAILING FLANGE ON BOTH SIDES | 168 | Standard | N/A |
|
|
| VSC35120FF | 3.5″ x 120″ FLANGE FRONT | 168 | Flange Front | 3.5″ X cut to length |
|
|
| VSC35120SL | 3.5″ x 120″ SINGLE NAILING FLANGE | 168 | Nailing | N/A |
|
|
| VSC35120SMC34 | 3.5″ x 120″ STUCCO MILCOR 3/4″ | 168 | Stucco | N/A |
|
|
| VSC35120SMC78 | 3.5″ x 120″ STUCCO MILCOR 7/8″ | 168 | Stucco | N/A |
|
|
| VSC4108IF | 4″ X 108″ SOFFIT VENT-INSPECTION | 172 | Flange Front, Inspection | 4.25″ x 108.125″ |
|
|
| VSC4120 | 4″ x 120″ NAILING FLANGE ON BOTH SIDES | 192 | Standard | N/A |
|
|
| VSC4120FF | 4″ x 120″ FLANGE FRONT | 192 | Flange Front | 4″ X cut to length |
|
|
| VSC4120IF | 4″ X 120″ INSPECTION VENT – BALCONY & DECK | 192 | Flange Front, Inspection | 4.25″ x 120.125″ |
|
|
| VSC4120R | 4″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 192 | Retrofit | N/A |
|
|
| VSC4120SL | 4″ x 120″ SINGLE NAILING FLANGE | 192 | Nailing | N/A |
|
|
| VSC4120SMC34 | 4″ x 120″ STUCCO MILCOR 3/4″ | 192 | Stucco | N/A |
|
|
| VSC4120SMC78 | 4″ x 120″ STUCCO MILCOR 7/8″ | 192 | Stucco | N/A |
|
|
| VSC424IF | 4″ X 24″ INSPECTION VENT – BALCONY & DECK | 39 | Flange Front, Inspection | 4.25″ x 24.125″ |
|
|
| VSC436IF | 4″ X 36″INSPECTION VENT – BALCONY & DECK | 58 | Flange Front | 4.25″ x 36.125″ |
|
|
| VSC448IF | 4″ X 48″ SOFFIT VENT-INSPECTION | 77 | Flange Front, Inspection | 4.25″ x 48.125″ |
|
|
| VSC460IF | 4″ X 60″ INSPECTION VENT – BALCONY & DECK | 96 | Flange Front, Inspection | 4.25″ x 60.125″ |
|
|
| VSC472IF | 4″ X 72″ INSPECTION VENT – BALCONY & DECK | 115 | Flange Front, Inspection | 4.25″ x 72.125″ |
|
|
| VSC484IF | 4″ X 84″ SOFFIT VENT-INSPECTION | 135 | Flange Front, Inspection | 4.25″ x 84.125″ |
|
|
| VSC496IF | 4″ X 96″ SOFFIT VENT-INSPECTION | 153 | Flange Front, Inspection | 4.25″ x 96.125″ |
|
|
| VSC5120 | 5″ x 120″ NAILING FLANGE ON BOTH SIDES | 240 | Standard | N/A |
|
|
| VSC5120FF | 5″ x 120″ FLANGE FRONT | 240 | Flange Front | 5″ X cut to length |
|
|
| VSC5120R | 5″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 240 | Retrofit | N/A |
|
|
| VSC5120SL | 5″ x 120″ SINGLE NAILING FLANGE | 240 | Nailing | N/A |
|
|
| VSC5120SMC34 | 5″ x 120″ STUCCO MILCOR 3/4″ | 240 | Stucco | N/A |
|
|
| VSC5120SMC78 | 5″ x 120″ STUCCO MILCOR 7/8″ | 240 | Stucco | N/A |
|
|
| VSC6120 | 6″ x 120″ NAILING FLANGE ON BOTH SIDES | 288 | Standard | N/A |
|
|
| VSC6120FF | 6″ x 120″ FLANGE FRONT | 288 | Flange Front | 6″ X cut to length |
|
|
| VSC6120R | 6″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 288 | Retrofit | N/A |
|
|
| VSC6120SL | 6″ x 120″ SINGLE NAILING FLANGE | 288 | Nailing | N/A |
|
|
| VSC6120SMC34 | 6″ x 120″ STUCCO MILCOR 3/4″ | 288 | Stucco | N/A |
|
|
| VSC6120SMC78 | 6″ x 120″ STUCCO MILCOR 7/8″ | 288 | Stucco | N/A |
|
|
Flange Styles
Standard Finishes
G90 Galvanized, Stainless, Copper, Bonderized
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VDHR1224 | 12″ x 24″ HALF ROUND dormer VENT | 90 | Standard | N/A |
|
|
| VDHR1224R | 12″ x 24″ RETROFIT HALF ROUND dormer VENT W/ SOFT ZINC HOOD | 90 | Retrofit | N/A |
|
|
| VDHR918 | 9″ x 18″ HALF ROUND dormer VENT | 51 | Standard | N/A |
|
|
| VDHR918R | 9″ x 18″ RETROFIT HALF ROUND dormer VENT W/ SOFT ZINC HOOD | 51 | Retrofit | N/A |
|
|
| VDLR419 | 4″ x 19″ LOW PROFILE VENT “EYEBROW” | 52 | Standard | N/A |
|
|
| VSB1212 | 12″ x 12″ WITH 3″ FLANGES ON ALL 4 SIDES | 105 | Sub Base | 13 X 13 |
|
|
| VSB7519 | 7.5″ x 19″ WITH 3″ FLANGES ON ALL 4 SIDES | 108 | Sub Base | 8 X 20 |
|
|
| VSB8585 | 8.5″ x 8.5″ WITH 3″ FLANGES ON ALL 4 SIDES | 54 | Sub Base | 10 X 10 |
|
|
Flange Styles
Standard Finishes
G90 Galvanized, Stainless, Copper, Bonderized
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VE3514 | 3.5″ x 14″ TABBED EAVE VENT | 24 | Standard | 2×4 Rafters – 16″ OC |
|
|
| VE3514RT | 3.5″ x 14″ REVERSE TAB EAVE VENT | 24 | Reverse Tab | 2×4 Rafters – 16″ OC |
|
|
| VE3522 | 3.5″ x 22″ TABBED EAVE VENT | 41 | Standard | 2×4 Rafters – 24″ OC |
|
|
| VE3522RT | 3.5″ x 22″ REVERSE TAB EAVE VENT | 41 | Reverse Tab | 2×4 Rafters – 24″ OC |
|
|
| VE5514 | 5.5″ x 14″ TABBED EAVE VENT | 44 | Standard | 2×6 Rafters – 16″ OC |
|
|
| VE5514RT | 5.5″ x 14″ REVERSE TAB EAVE VENT | 44 | Reverse Tab | 2×6 Rafters – 16″ OC |
|
|
| VE5522 | 5.5″ x 22″ TABBED EAVE VENT | 75 | Standard | 2×6 Rafters – 24″ OC |
|
|
| VE5522RT | 5.5″ x 22″ REVERSE TAB EAVE VENT | 75 | Reverse Tab | 2×6 Rafters – 24″ OC |
|
|
| VE7514 | 7.5″ x 14″ TABBED EAVE VENT | 75 | Standard | 2×8 Rafters – 16″ OC |
|
|
| VE7514RT | 7.5″ x 14″ REVERSE TAB EAVE VENT | 75 | Reverse Tab | 2×8 Rafters – 16″ OC |
|
|
| VE7522 | 7.5″ x 22″ TABBED EAVE VENT | 119 | Standard | 2×8 Rafters – 24″ OC |
|
|
| VE7522RT | 7.5″ x 22″ REVERSE TAB EAVE VENT | 119 | Reverse Tab | 2×8 Rafters – 24″ OC |
|
|
| VER2 | 2″ ROUND LOUVERED FACE FIRE VENT | 1 | Round | 2 Round Hole |
|
|
| VER2M | 2″ ROUND MESH FACE FIRE VENT | 2 | Round | 2 Round Hole |
|
|
| VER3 | 3″ ROUND LOUVERED FACE FIRE VENT | 2 | Round | 3 Round Hole |
|
|
| VER3M | 3″ ROUND MESH FACE FIRE VENT | 4 | Round | 3 Round Hole |
|
|
| VER4 | 4″ ROUND LOUVERED FACE FIRE VENT | 4 | Round | 4 Round Hole |
|
|
| VER4M | 4″ ROUND MESH FACE FIRE VENT | 8 | Round | 4 Round Hole |
|
|
Flange Styles
Standard Finishes
G90 Galvanized, Stainless, Copper, Bonderized
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VFS414FB | 4″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 24 | Foam Back | 3.5 X 13.5 |
|
|
| VFS414FC | 4″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 24 | Fiber Cement | 3.5 X 13.5 |
|
|
| VFS414FF | 4″ x 14″ FLANGE FRONT | 24 | Flange Front, Retrofit | 3.5 X 13.5 |
|
|
| VFS414S | 4″ x 14″ STUCCO SET BACK 3/4″ | 24 | Stucco | 3.5 X 13.5 |
|
|
| VFS614FB | 6″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 41 | Foam Back | 5.5 X 13.5 |
|
|
| VFS614FC | 6″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 41 | Fiber Cement | 5.5 X 13.5 |
|
|
| VFS614FF | 6″ x 14″ FLANGE FRONT | 41 | Flange Front, Retrofit | 5.5 X 13.5 |
|
|
| VFS614LFF | 6″ x 14″ LOUVERED, FLANGE FRONT | 14.5 | Flange Front, Retrofit | 6 X 14 |
|
|
| VFS614S | 6″ x 14″ STUCCO SET BACK 3/4″ | 41 | Stucco | 5.5 X 13.5 |
|
|
| VFS814FB | 8″ x 14″ FOAM BACK FLANGE SET BACK 1-1/2″ | 62 | Foam Back | 7.5 X 13.5 |
|
|
| VFS814FC | 8″ x 14″ FIBER CEMENT FLANGE SET BACK 3/8″ | 62 | Fiber Cement | 7.5 X 13.5 |
|
|
| VFS814FF | 8″ x 14″ FLANGE FRONT | 62 | Flange Front, Retrofit | 7.5 X 13.5 |
|
|
| VFS814S | 8″ x 14″ STUCCO SET BACK 3/4″ | 62 | Stucco | 7.5 X 13.5 |
|
|
Flange Styles
Standard Finishes
G90 Galvanized, Stainless, Copper, Powder Coated
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VSC1120RV | 1″ x 120″ STANDING SEEM RIDGE FLANGE | 50 | Standard | N/A |
|
|
| VSC2120 | 2″ x 120″ NAILING FLANGE ON BOTH SIDES | 96 | Standard | N/A |
|
|
| VSC2120FF | 2″ x 120″ FLANGE FRONT | 96 | Flange Front | 2″ cut to length |
|
|
| VSC2120R | 2″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 96 | Retrofit | N/A |
|
|
| VSC2120SL | 2″ x 120″ SINGLE NAILING FLANGE | 96 | Nailing | N/A |
|
|
| VSC2120SMC34 | 2″ x 120″ STUCCO MILCOR 3/4″ | 96 | Stucco | N/A |
|
|
| VSC2120SMC78 | 2″ x 120″ STUCCO MILCOR 7/8″ | 96 | Stucco | N/A |
|
|
| VSC25120 | 2.5″ x 120″ NAILING FLANGE ON BOTH SIDES | 120 | Standard | N/A |
|
|
| VSC25120FF | 2.5″ x 120″ FLANGE FRONT | 120 | Flange Front | 2.5″ X cut to length |
|
|
| VSC25120R | 2.5″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 120 | Retrofit | N/A |
|
|
| VSC25120SL | 2.5″ x 120″ SINGLE NAILING FLANGE | 120 | Nailing | N/A |
|
|
| VSC25120SMC34 | 2.5″ x 120″ STUCCO MILCOR 3/4″ | 120 | Stucco | N/A |
|
|
| VSC25120SMC78 | 2.5″ x 120″ STUCCO MILCOR 7/8″ | 120 | Stucco | N/A |
|
|
| VSC3120 | 3″ x 120″ NAILING FLANGE ON BOTH SIDES | 144 | Standard | N/A |
|
|
| VSC3120FF | 3″ x 120″ FLANGE FRONT | 144 | Flange Front | 3″ X cut to length |
|
|
| VSC3120R | 3″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 144 | Retrofit | N/A |
|
|
| VSC3120SL | 3″ x 120″ SINGLE NAILING FLANGE | 144 | Nailing | N/A |
|
|
| VSC3120SMC34 | 3″ x 120″ STUCCO MILCOR 3/4″ | 144 | Stucco | N/A |
|
|
| VSC3120SMC78 | 3″ x 120″ STUCCO MILCOR 7/8″ | 144 | Stucco | N/A |
|
|
| VSC35120 | 3.5″ x 120″ NAILING FLANGE ON BOTH SIDES | 168 | Standard | N/A |
|
|
| VSC35120FF | 3.5″ x 120″ FLANGE FRONT | 168 | Flange Front | 3.5″ X cut to length |
|
|
| VSC35120SL | 3.5″ x 120″ SINGLE NAILING FLANGE | 168 | Nailing | N/A |
|
|
| VSC35120SMC34 | 3.5″ x 120″ STUCCO MILCOR 3/4″ | 168 | Stucco | N/A |
|
|
| VSC35120SMC78 | 3.5″ x 120″ STUCCO MILCOR 7/8″ | 168 | Stucco | N/A |
|
|
| VSC4120 | 4″ x 120″ NAILING FLANGE ON BOTH SIDES | 192 | Standard | N/A |
|
|
| VSC4120FF | 4″ x 120″ FLANGE FRONT | 192 | Flange Front | 4″ X cut to length |
|
|
| VSC4120R | 4″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 192 | Retrofit | N/A |
|
|
| VSC4120SL | 4″ x 120″ SINGLE NAILING FLANGE | 192 | Nailing | N/A |
|
|
| VSC4120SMC34 | 4″ x 120″ STUCCO MILCOR 3/4″ | 192 | Stucco | N/A |
|
|
| VSC4120SMC78 | 4″ x 120″ STUCCO MILCOR 7/8″ | 192 | Stucco | N/A |
|
|
| VSC5120 | 5″ x 120″ NAILING FLANGE ON BOTH SIDES | 240 | Standard | N/A |
|
|
| VSC5120FF | 5″ x 120″ FLANGE FRONT | 240 | Flange Front | 5″ X cut to length |
|
|
| VSC5120R | 5″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 240 | Retrofit | N/A |
|
|
| VSC5120SL | 5″ x 120″ SINGLE NAILING FLANGE | 240 | Nailing | N/A |
|
|
| VSC5120SMC34 | 5″ x 120″ STUCCO MILCOR 3/4″ | 240 | Stucco | N/A |
|
|
| VSC5120SMC78 | 5″ x 120″ STUCCO MILCOR 7/8″ | 240 | Stucco | N/A |
|
|
| VSC6120 | 6″ x 120″ NAILING FLANGE ON BOTH SIDES | 288 | Standard | N/A |
|
|
| VSC6120FF | 6″ x 120″ FLANGE FRONT | 288 | Flange Front | 6″ X cut to length |
|
|
| VSC6120R | 6″ x 120″ NO FLANGE CONTINUOUS RETROFIT | 288 | Retrofit | N/A |
|
|
| VSC6120SL | 6″ x 120″ SINGLE NAILING FLANGE | 288 | Nailing | N/A |
|
|
| VSC6120SMC34 | 6″ x 120″ STUCCO MILCOR 3/4″ | 288 | Stucco | N/A |
|
|
| VSC6120SMC78 | 6″ x 120″ STUCCO MILCOR 7/8″ | 288 | Stucco | N/A |
|
|
Flange Styles
Standard Finishes
G90 Galvanized, Stainless, Copper, Powder Coated
| Mfg. Part # | Description | NFVA(square inches) | Flange Style | Cut Out(inches) | Spec. Sheet(download) | Sample Image |
|---|---|---|---|---|---|---|
| VSC4108IF | 4″ X 108″ SOFFIT VENT-INSPECTION | 172 | Flange Front, Inspection | 4.25″ x 108.125″ |
|
|
| VSC4120IF | 4″ X 120″ INSPECTION VENT – BALCONY & DECK | 192 | Flange Front, Inspection | 4.25″ x 120.125″ |
|
|
| VSC424IF | 4″ X 24″ INSPECTION VENT – BALCONY & DECK | 39 | Flange Front, Inspection | 4.25″ x 24.125″ |
|
|
| VSC436IF | 4″ X 36″INSPECTION VENT – BALCONY & DECK | 58 | Flange Front | 4.25″ x 36.125″ |
|
|
| VSC448IF | 4″ X 48″ SOFFIT VENT-INSPECTION | 77 | Flange Front, Inspection | 4.25″ x 48.125″ |
|
|
| VSC460IF | 4″ X 60″ INSPECTION VENT – BALCONY & DECK | 96 | Flange Front, Inspection | 4.25″ x 60.125″ |
|
|
| VSC472IF | 4″ X 72″ INSPECTION VENT – BALCONY & DECK | 115 | Flange Front, Inspection | 4.25″ x 72.125″ |
|
|
| VSC484IF | 4″ X 84″ SOFFIT VENT-INSPECTION | 135 | Flange Front, Inspection | 4.25″ x 84.125″ |
|
|
| VSC496IF | 4″ X 96″ SOFFIT VENT-INSPECTION | 153 | Flange Front, Inspection | 4.25″ x 96.125″ |
|
|
Architect-Approved Vents
Architects/Fire Inspectors
Our vents have successfully undergone testing according to ASTM E 2886 and ASTM E119 standards. These tests assess their ability to prevent ember intrusion and flame penetration when installed either vertically or horizontally. This makes them the preferred choice for architects seeking to demonstrate compliance with building safety measures for their clients.
Comply with California Regulations
Architects prefer our vents to enhance a building’s fire resistance for their clients in the Wildland-Urban Interface (WUI), as Chapter 7A of the California Building Code requires. This interface, where human development meets wildland fuels, is prone to wildfires, and our vents are precisely tested to guard against embers in these vulnerable areas effectively.
What Makes Us the Best Choice for Architects?
We know that architects expect only the finest vents for their projects. This is why we deliver the best fire-rated vents to meet their project requirements.
Our fire-resistant vents have the highest airflow in the industry.
Our vents have a smaller mesh size to catch the smallest embers.
Our vents have a coating that expands & seals tightly against embers.
Our ember vents are manufactured from corrosion-resistant materials.
Frequently Asked Questions
Architects can explore custom vent options with Vulcan Vents to meet their specific architectural needs. California’s building code allows local officials and enforcing agencies to approve alternative materials, designs, or construction methods that comply with Chapter 7A’s intent. Architects can collaborate with Vulcan Vents to create custom vent solutions that align with their architectural vision while ensuring fire safety and compliance.
Architects adhere to local building codes, often specifying the required net-free ventilation area (NFVA) to ensure proper home ventilation. With the best airflow capabilities in the industry, Vulcan Vents aids architects in achieving the necessary NFVA to meet building code requirements. This makes us an invaluable choice for architects striving to create compliant and well-ventilated structures.
Architects working on projects near the Wildland-Urban Interface should prioritize Vulcan Vents due to their ember-resistant and fire-rated properties. These vents offer superior protection against ember intrusion and flames, making them a crucial choice for architects focused on the safety of structures in high-risk areas.
Vulcan Vents offers architects a valuable solution for addressing wildfire risks in regions beyond California. Since different states have their own adopted building codes and standards, architects can rely on Vulcan Vents’ ICC listings and compliance with recognized standards to meet the building code requirements specific to their location. Vulcan Vents provides architects with a fire and ember-safe vent option that aligns with their architectural goals.
Vulcan Vents’ baffle-free design is advantageous for architects as it allows unrestricted airflow. This feature ensures that architects can achieve optimal ventilation in their designs without compromising on safety, making Vulcan Vents an excellent choice for architects seeking efficient airflow solutions.
We recommend using EverKem 814+ intumescent fire caulking for most installations of Vulcan Vents. This choice is crucial because it helps create a fire-resistant seal around the vent, preventing gaps between the fire resistant vent and your building material. This seal is vital in stopping flying embers from entering your structure during a fire.
Don't Wait – Get the CAD File Now!
*Files are in vector PDF format
