The Vent That Protects
Like our entire product line, our gable vents are fire and ember resistant.
We recommend a combination of vertical and horizontal vents. On hotter days, lower horizontal vents will intake relatively cooler air when there is sufficient venting above the horizontal (soffit, eave, continuous) and exhausts hot air from the attic through vertical gable and dormer vents.

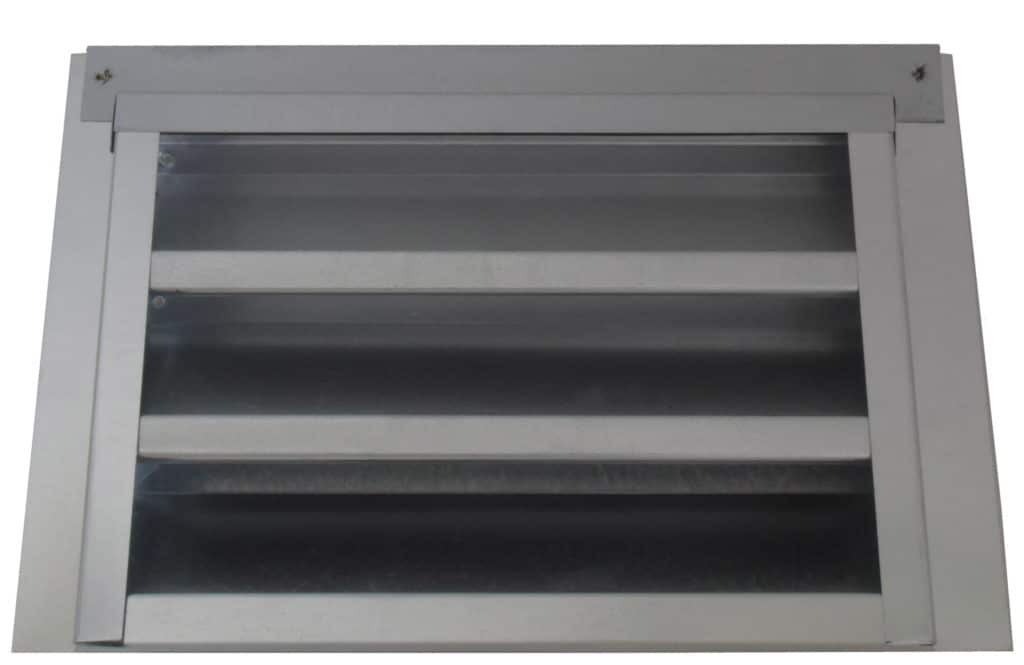

VG (Vulcan Gable)
| SKU | SIZE IN INCHES | NFVA IN SQUARE INCHES |
|---|---|---|
| VG148S | 14 x 8 | 29 |
| VG148FF | 14 x 8 | 29 |
| VG148FB | 14 x 8 | 29 |
| VG148FC | 14 x 8 | 29 |
| VG148FM | 14 x 8 | 29 |
| VG148R | 14 x 8 | 29 |
| VG148SMC | 14 x 8 | 29 |
| VG1412FM | 14 x 12 | 58 |
| VG1412R | 14 x 12 | 58 |
| VG1412SMC | 14 x 12 | 58 |
| VG1412S | 14 x 12 | 58 |
| VG1412FF | 14 x 12 | 58 |
| VG1412FB | 14 x 12 | 58 |
| VG1412FC | 14 x 12 | 58 |
| VG1418FM | 14 x 18 | 86 |
| VG1418R | 14 x 18 | 86 |
| VG1418SMC | 14 x 18 | 86 |
| VG1418S | 14 x 18 | 86 |
| VG1418FF | 14 x 18 | 86 |
| VG1418FB | 14 x 18 | 86 |
| VG1418FC | 14 x 18 | 86 |
| VG1424FM | 14 x 24 | 115 |
| VG1424R | 14 x 24 | 115 |
| VG1424SMC | 14 x 24 | 115 |
| VG1424S | 14 x 24 | 115 |
| VG1424FF | 14 x 24 | 115 |
| VG1424FB | 14 x 24 | 115 |
| VG1424FC | 14 x 24 | 115 |
Retrofit Gable End Vent: Exterior
| SKU | SIZE IN INCHES | NFVA IN SQUARE INCHES |
|---|---|---|
| VG148R (S,FF,FB,FC) | 14 x 8 | 29 (approx) |
| VG1412R (S,FF,FB,FC) | 14 x 12 | 54 |
| VG1418R (S,FF,FB,FC) | 14 x 18 | 78 |
| VG1424R (S,FF,FB,FC) | 14 x 24 | 102 |
Retrofit Gable End Vent: Interior
| SKU | SIZE IN INCHES | TYPE | NFVA |
|---|---|---|---|
| VM1424 | 13.75 x 24 | Matrix Only Retrofit Gable End Vent: Interior | Depends too much on specific location and size of gable to determine |
| VM2424 | 24 x 24 | Matrix Only Retrofit Gable End Vent: Interior | Depends too much on specific location and size of gable to determine |
| VM4824 | 48 X 24 | Matrix Only Retrofit Gable End Vent: Interior | Depends too much on specific location and size of gable to determine |
“NFVA”: Net free ventilation area. This indicates the amount of open ventilation, measured in square inches.
Install Vulcan Vents in numerous construction materials: Wood (FF), Stucco (S) as well as with Mil Core (SMC) and Foam Back (FB), Fiber Cement (FC), and more.
“Matrix only”: The honeycomb matrix with active intumescent fire control only to fit into current vents.
Product Summary
- The Vulcan Gable Vent is available for new, or retro-fit applications.
- With intumescent coating that closes at high temperatures and ember catching mesh.
Downloads : PDF cutsheets for limited models (more to come) available here
