Retrofits

The Vent That Protects

Our retrofit kits and matrixes are available simply for existing installations where removal of current hardware is unrealistic. The honeycomb matrix along with the screen mesh (sold together) can be used in a variety of retro-fit applications. Inside the attic, behind existing gable and eave vents, the matrix can be cut to size and fastened to the existing 1/4” screen. Retrofits are as easy as 1, 2, 3. Please feel free to contact us if you have any questions!

Retrofit Gable End Vent: Exterior

SKUSIZE IN INCHESNFVA IN SQUARE INCHES
VG148R14 x 829 (approx)
VG1412R14 x 1254
VG1418R14 x 1878
VG1424R14 x 24102
More sizes available through custom order.

Retrofit Gable End Vent: Interior

SKUSIZE IN INCHESTYPENFVA
VM142413.75 x 24Matrix & mesh only Retrofit gable end vent: InteriorDependent on opening
VM242424 x 24Matrix & mesh only Retrofit gable end vent: InteriorDependent on opening
VM482448 X 24Matrix & mesh only Retrofit gable end vent: InteriorDependent on opening

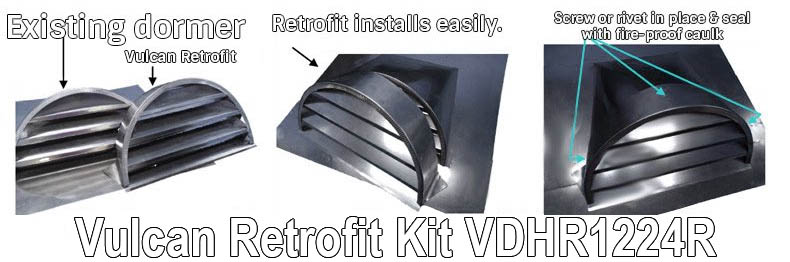

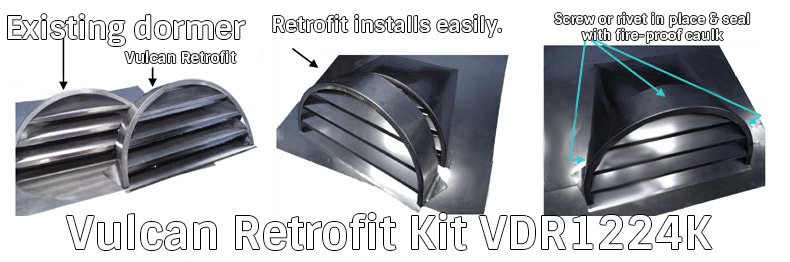

Retrofit Half Round Dormers

SKUSIZE IN INCHESTYPENFVA IN SQUARE INCHES
VDHR918R9 x 18Dormer, Half Round Retrofit51
VDHR1224R12 x 24Dormer, Half Round Retrofit90

We can create custom sizes fit for your needs.

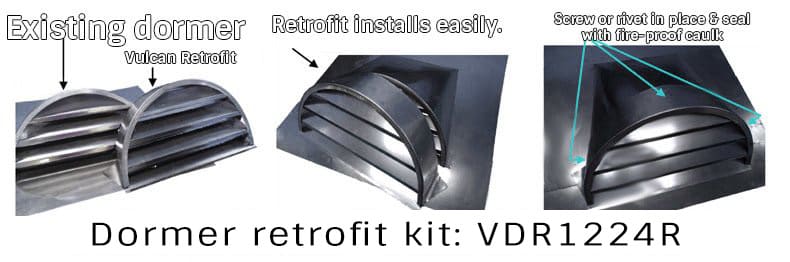

Retrofit Half Round Dormers

SKUSIZE IN INCHESTYPENFVA IN SQUARE INCHES
VDHR1224R12 x 24Dormer, Half Round Retrofit90
VDHR918R9 x 18Dormer, Half Round Retrofit51

Continuous, Soffit Retrofits

SKUSIZE IN INCHESTYPENFVA IN SQUARE INCHES
VFS814R8 x 14Soffit/Foundation Retrofit62
VSC2120R2 x 120Continuous Soffit Retrofit96
VSC3120R3 x 120Continuous Soffit Retrofit144

VE (Vulcan Eave)

NFVA: Net Free Ventilation Area
SKUSIZE IN INCHESNFVA IN SQUARE INCHESDescription
VER22 ROUND in.1With louvers
VER2M2 ROUND2Without louvers
VER33 ROUND2With louvers
VER3M3 ROUND5Without louvers
VER4
4 ROUND4With louvers
VER4M4 ROUND9Without louvers
VER66 ROUND8With louvers

The Vulcan Sub Flash is a remarkable product that can be used in conjunction with any other manufacturers dormer or roof vent and turn it into an ember and fire safe vent:

“NFVA”: Net free ventilation area. This indicates the amount of open ventilation, measured in square inches.

Subflashing

SKUTop size in inchesFlange Size in inchesNFVA IN SQUARE INCHES
VSF7519*8×1915×26.75108
VSB121213.5×13.520 x 20105
VSB858510×1016.5 x 16.554
*Is watertight, inquire for more info.

More sub-flashing info
